| Items | 48V/51.2V/2.56KWH | 48V/51.2V/5.12KWH | 48V/51.2V/7.68KWH | 48V/51.2V/10.24KWH |
|---|---|---|---|---|
| Rated Capacity | 50Ah | 100Ah | 150Ah | 200Ah |
| Minimum Capacity | ≥49.5Ah | ≥99.5Ah | ≥149.5Ah | ≥199.5Ah |
| Energy | 2.56KWh | 5.12KWh | 7.68KWh | 10.24KWh |
| Nominal Voltage | 48V/51.2V | 48V/51.2V | 48V/51.2V | 48V/51.2V |
| Open Voltage | 48V~52V | 48V~52V | 48V~52V | 48V~52V |
| Load Voltage | ≥48V | ≥48V | ≥48V | ≥48V |
| Internal Impedance | ≤80mΩ | ≤80mΩ | ≤80mΩ | ≤80mΩ |
| Charge voltage | 58.4V | 58.4V | 58.4V | 58.4V |
| Standard charge current | 25A | 50A | 100A | 100A |
| Max charge current | 50A | 100A | 150A | 200A |
| Standard discharge current | 50A | 100A | 150A | 200A |
| Max discharge current | 50A (continuous) | 100A (continuous) | 150A (continuous) | 200A (continuous) |
| Discharge cut-off voltage | 43.2V | 43.2V | 43.2V | 43.2V |
| Operating Charge Temperature | 0°C~+60°C | 0°C~+60°C | 0°C~+60°C | 0°C~+60°C |
| Operating Discharge Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Weight | - | About 52kg | - | - |
| Communication | CAN/RS485/RS232/Dry contact interface | |||

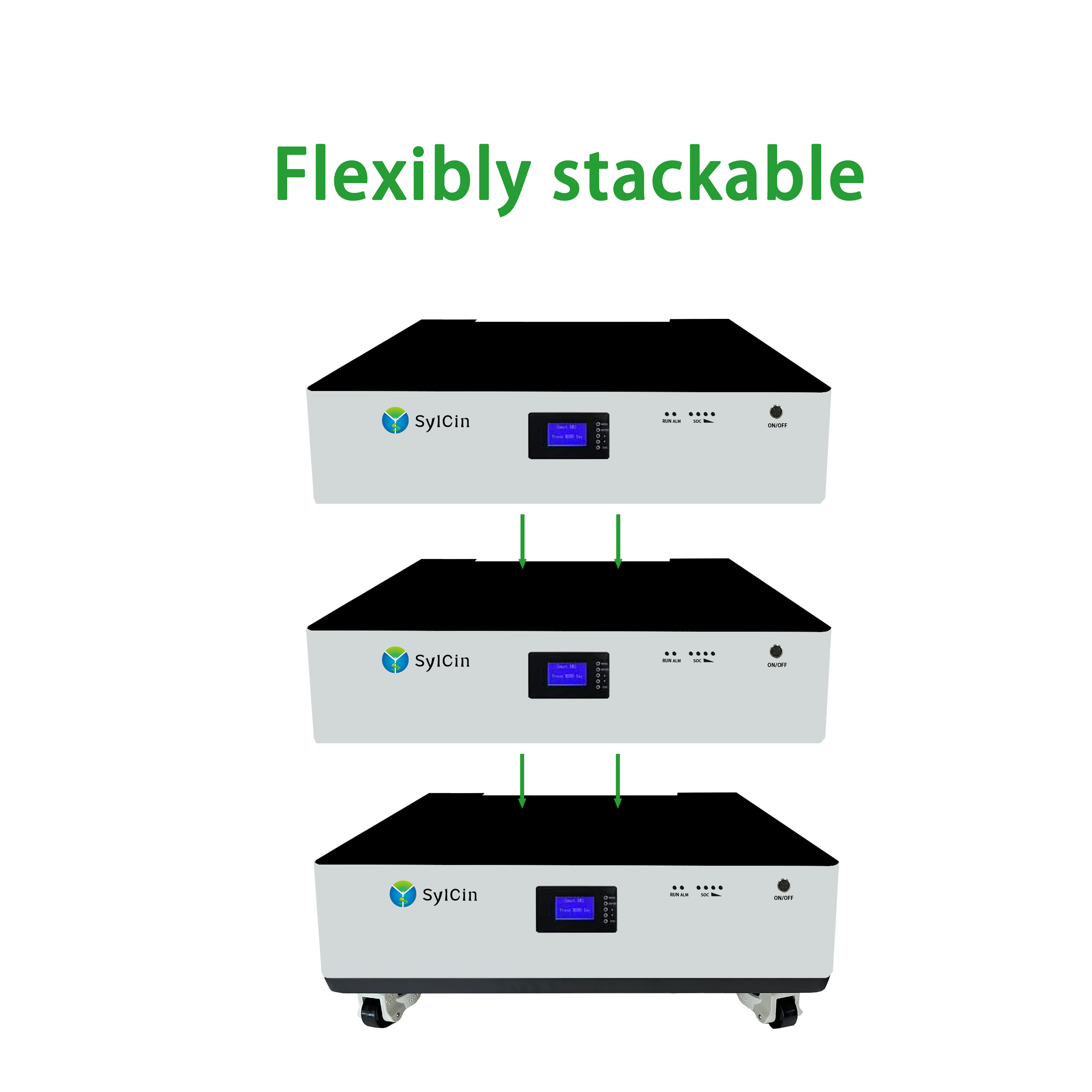

| Series-Parallel Connection | 15 battery modules connected in parallel | |||
| Size | - | 524*410*180mm | - | - |
| Model | SC-DD4850 | SC-DD48100 | SC-DD48150 | SC-DD48200 |
Customize the look and feel of your battery system. From cabinet design and surface finishing to color matching, exterior customization options help the system blend into your space or reflect your brand identity.
Choose the right energy size for your needs. From residential setups to small businesses or off-grid projects, capacity and voltage can be tailored to meet specific daily usage, backup, or expansion requirements.
Add an intuitive LED panel for real-time data visualization. The display can be programmed to show voltage, current, SOC, alarms, and other operational indicators, helping users monitor system performance at a glance.
For cold environments, the All-in-One battery can be equipped with a BMS-controlled self-heating function. When ambient temperatures fall below 0°C, heating is automatically triggered to raise the battery to safe operating temperatures (>10°C), ensuring reliable startup and stable energy supply.
Connect via Bluetooth for seamless access to system data on your mobile device. Monitor battery health, view historical performance, receive alerts, and even control operating parameters remotely for smarter, more convenient management.
Our SOH (State of Health) function continuously evaluates battery performance and long-term reliability. It helps users determine whether capacity is sufficient for demand and predicts when maintenance or replacement is needed — extending service life and minimizing downtime.
In addition to these functions, further customization is supported, including communication protocols, integration requirements, and special application features. Whatever your energy needs, we design solutions that fit perfectly.
Usually, we don’t offer free samples, but we can return the sample cost when you place a bulk order.
We suggest you pay by T/T, PayPal, Western Union, etc.

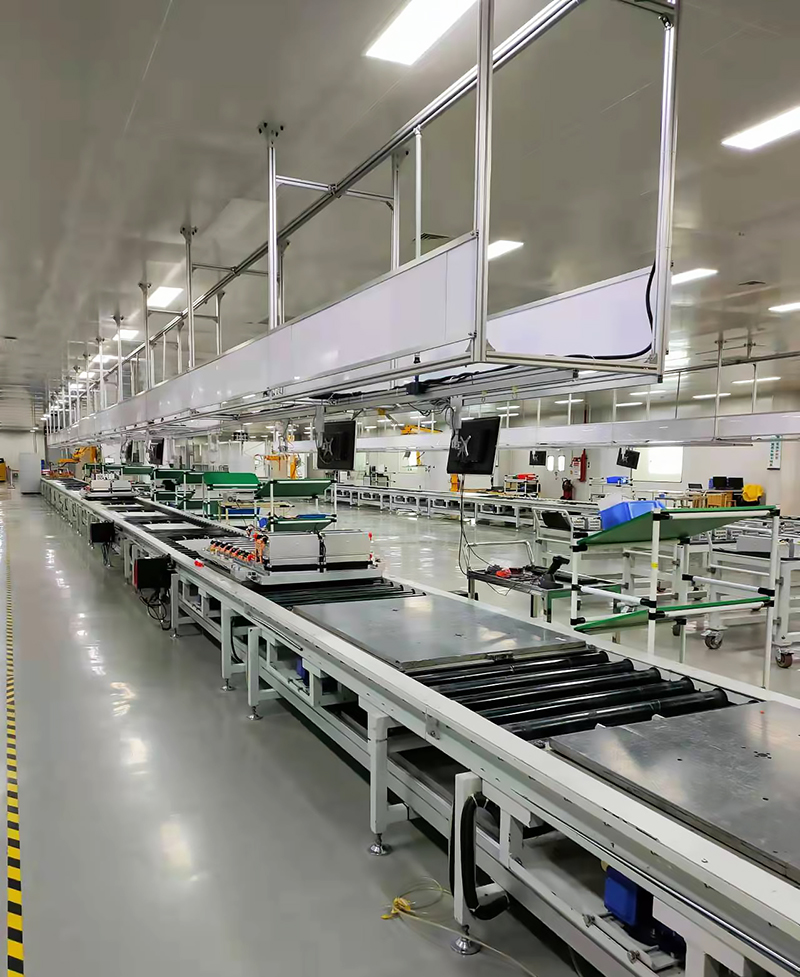

We are a professional manufacturer of lithium-ion rechargeable batteries with our own factory and brand.
(1) Take photos & videos of the problems and send to us.
(2) Send back the physical problem battery by express to us.
(3) Engineers will analyze the defective battery within 2 working days.
(4) 1 Year Warranty after leaving our factory. Our defect rate is under 1%, and we will repair or replace the battery for confirmed non-human factor quality problems.
We have EPR, UN38.3, etc. for most of our current models. If it's a custom-made design, we could apply for certificates for you, but the related fees should be paid by your side unless your order is large enough, in which case we will cover the certificate fees.
Of course. We have professional engineers that can give you the most suitable solution according to your special requirements.
